Runtime Atlas — Real-Time Unity System Inspection Toolkit

Runtime Atlas

Runtime Atlas is a production-grade Unity Editor extension designed for real-time runtime diagnostics and live scene inspection during Play Mode.

It consolidates performance monitoring, component inspection, profiling, alerts, reporting, and debugging workflows into a single persistent workspace — without requiring custom debug MonoBehaviours or intrusive scene modifications.

Built for developers who need accurate live data while working inside complex Unity projects.

Key Features

Inspection Systems

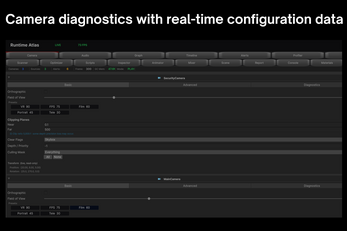

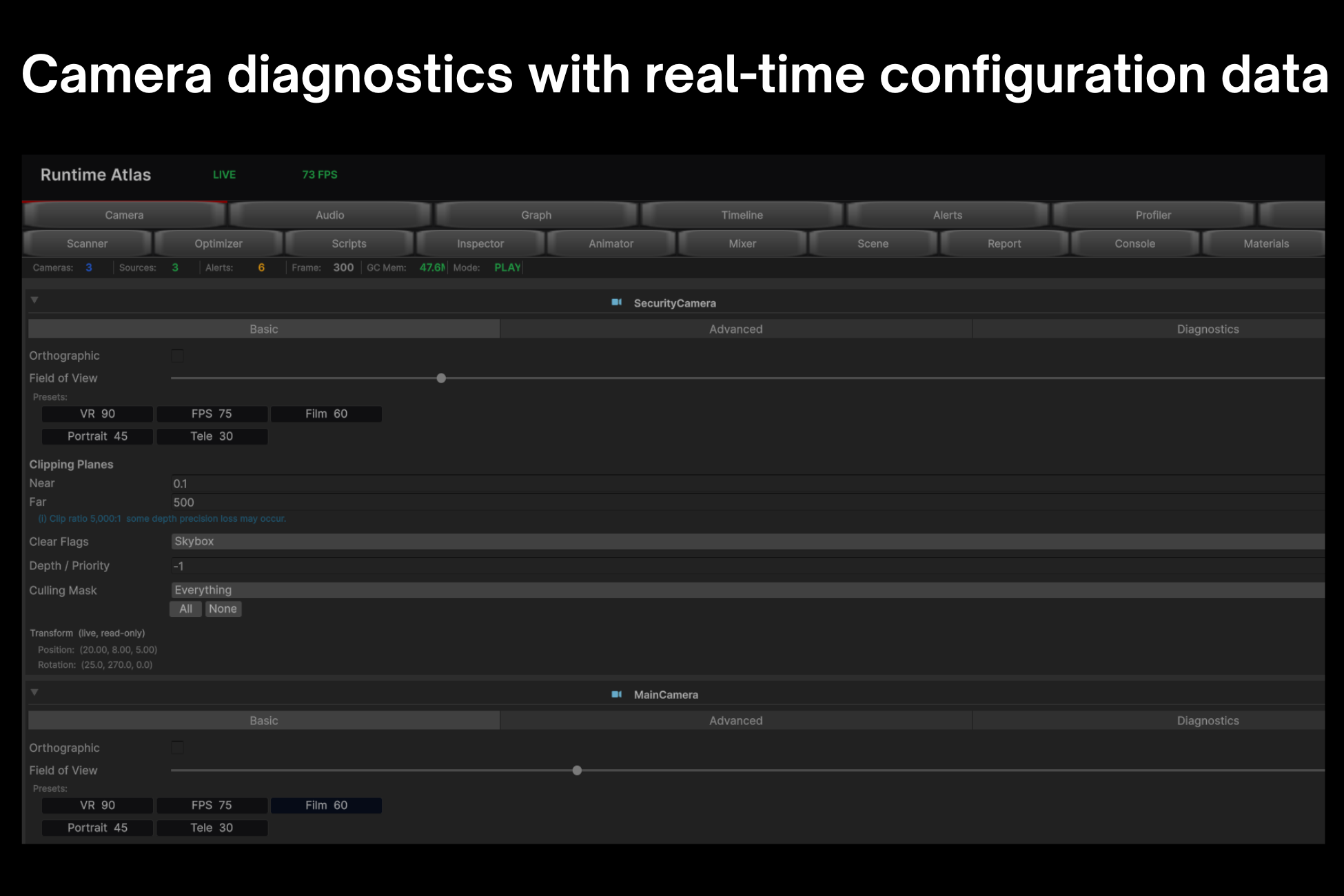

• Live Camera inspection

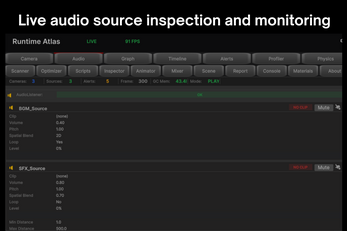

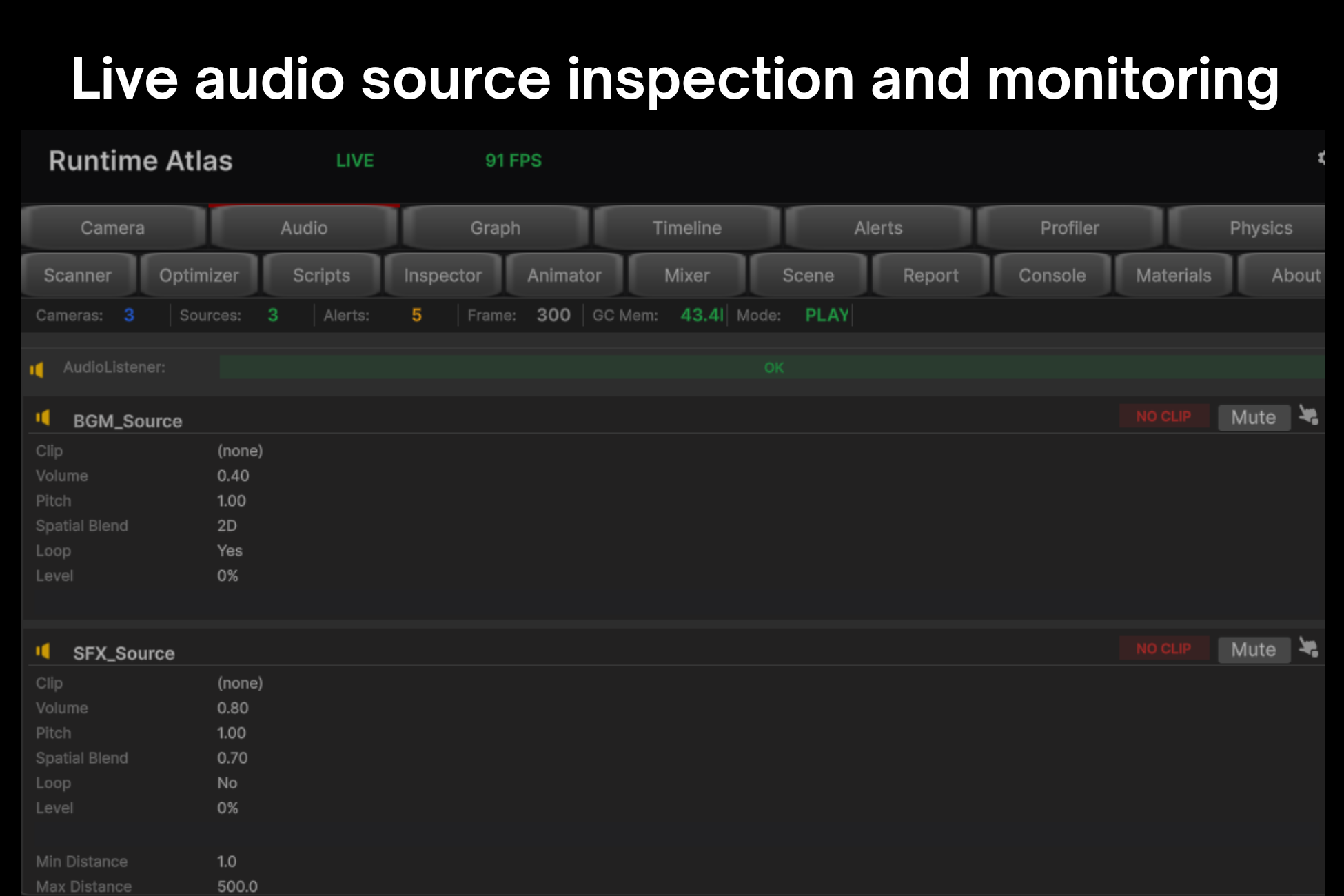

• AudioSource monitoring

• Rigidbody & Collider inspection

• Physics Layer Matrix viewer

• Animator parameter monitoring

• Material & Shader inspection

Diagnostics

• Alert system with severity levels

• Static C# script scanner

• Performance issue detection

• Optimizer suggestions

• Custom alert integration support

Performance

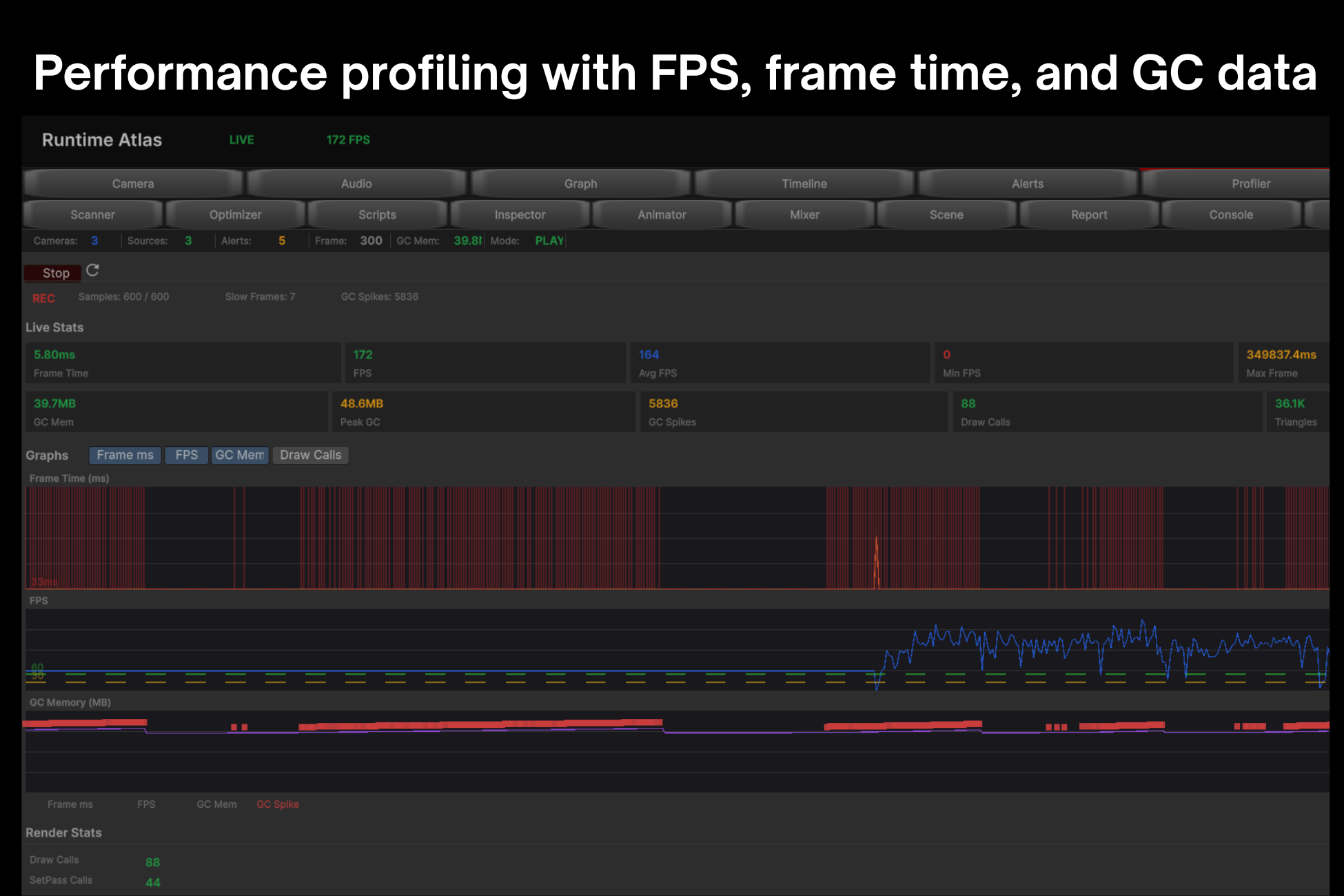

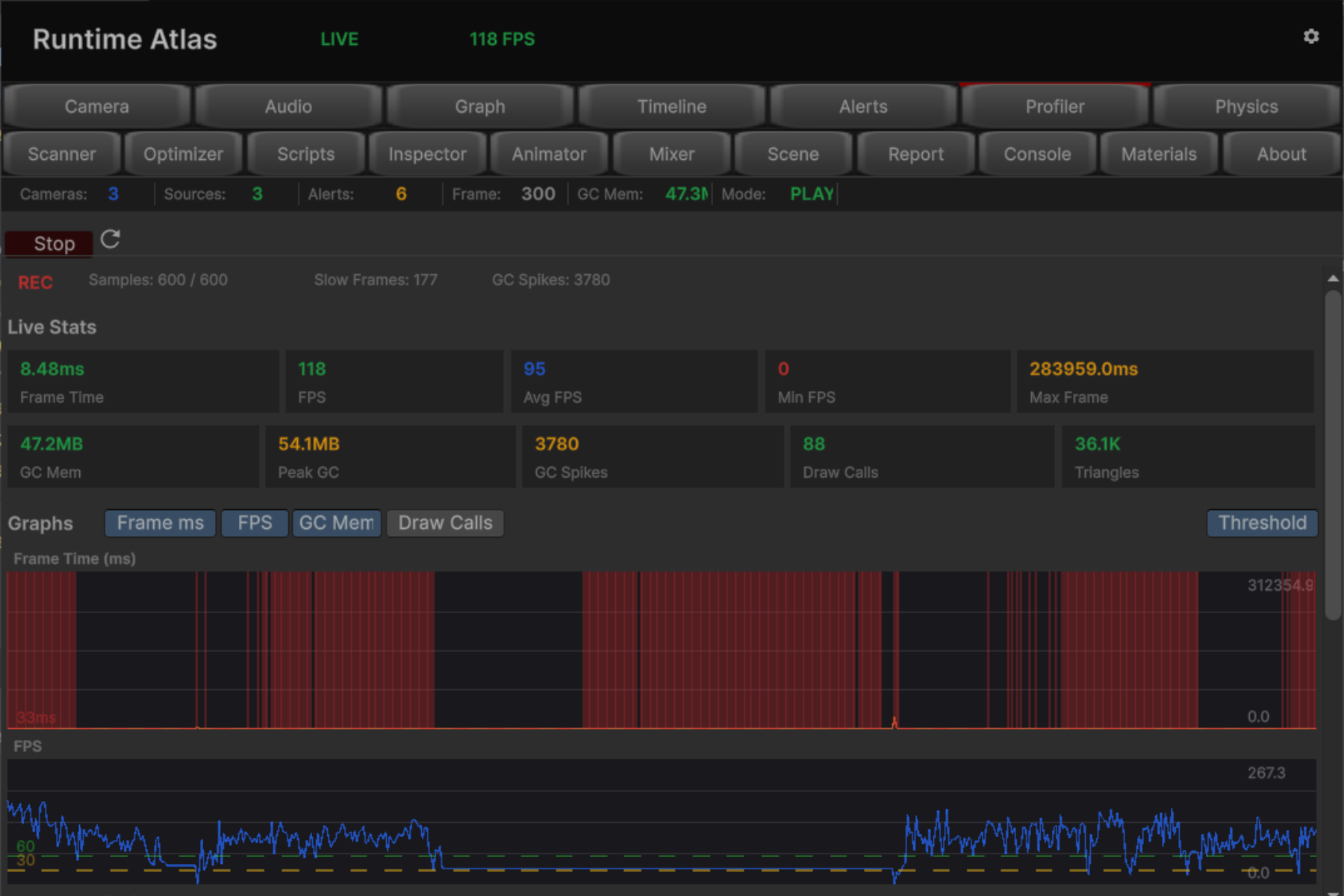

• Real-time FPS & frame-time monitoring

• GC allocation tracking

• Draw call & geometry statistics

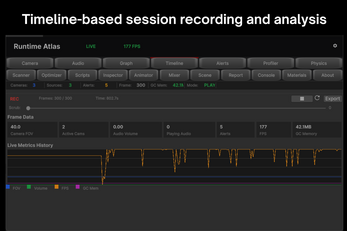

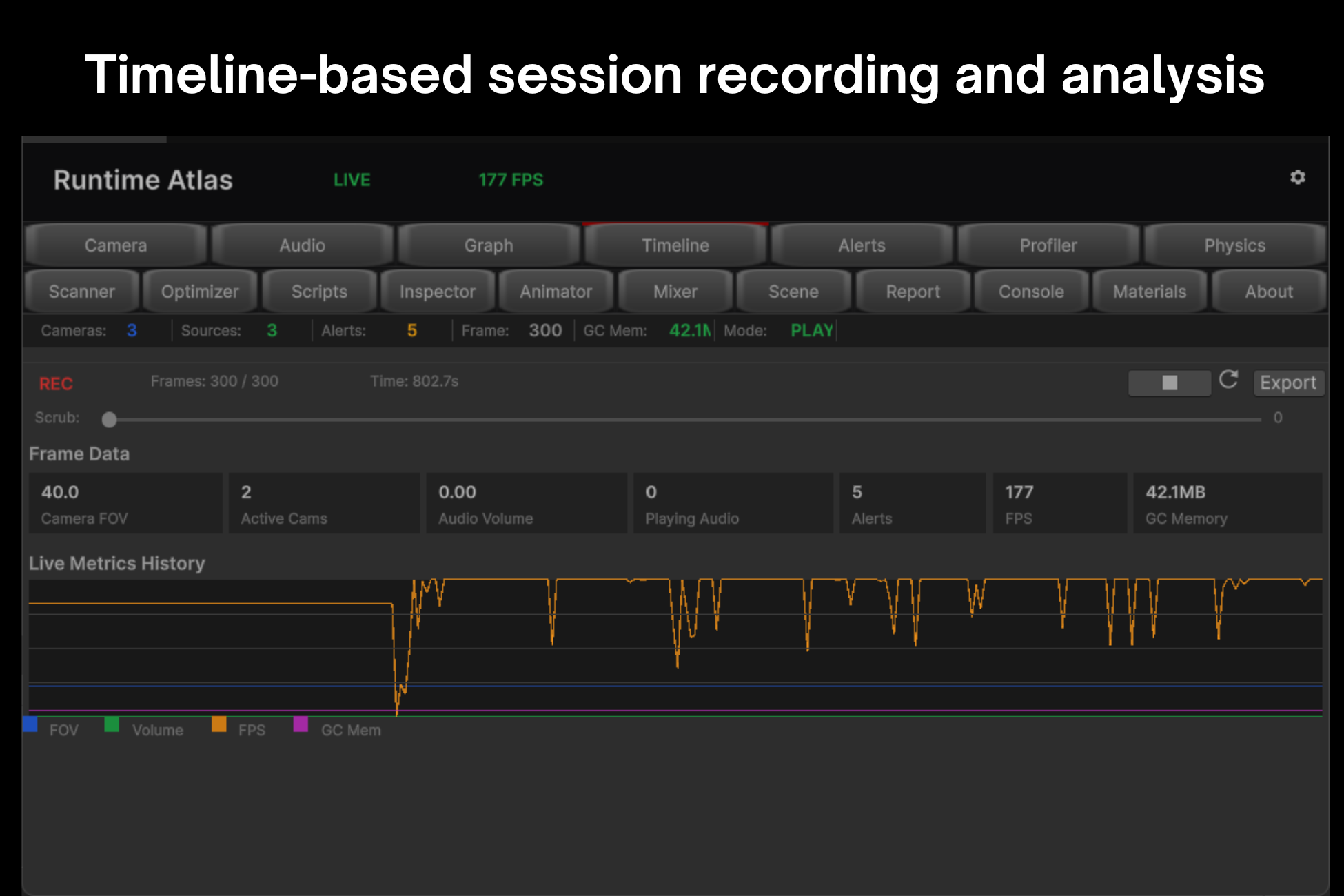

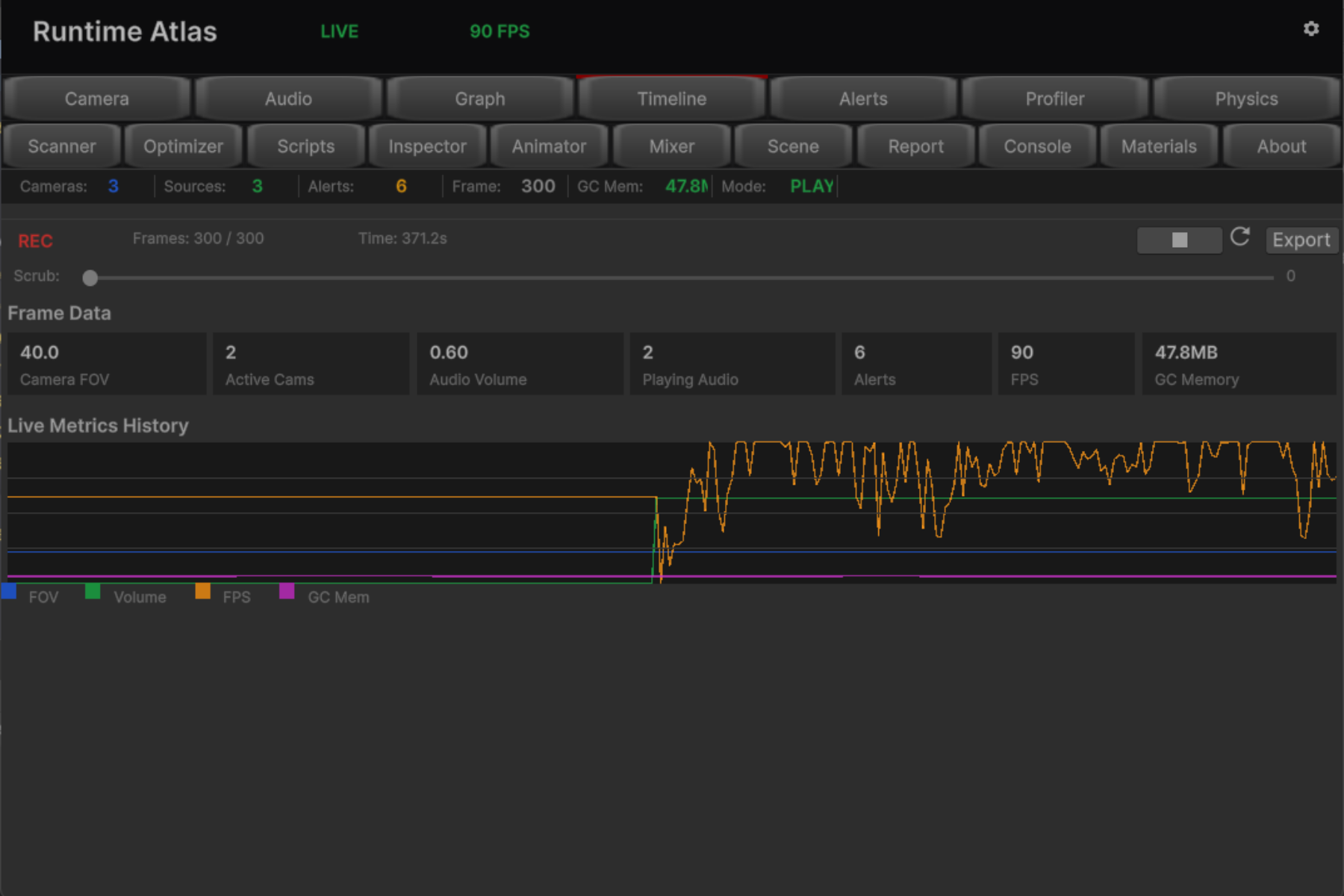

• Timeline recording & playback

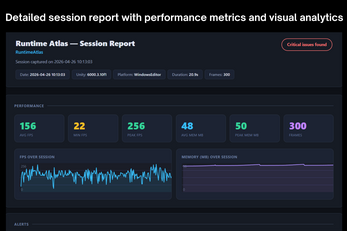

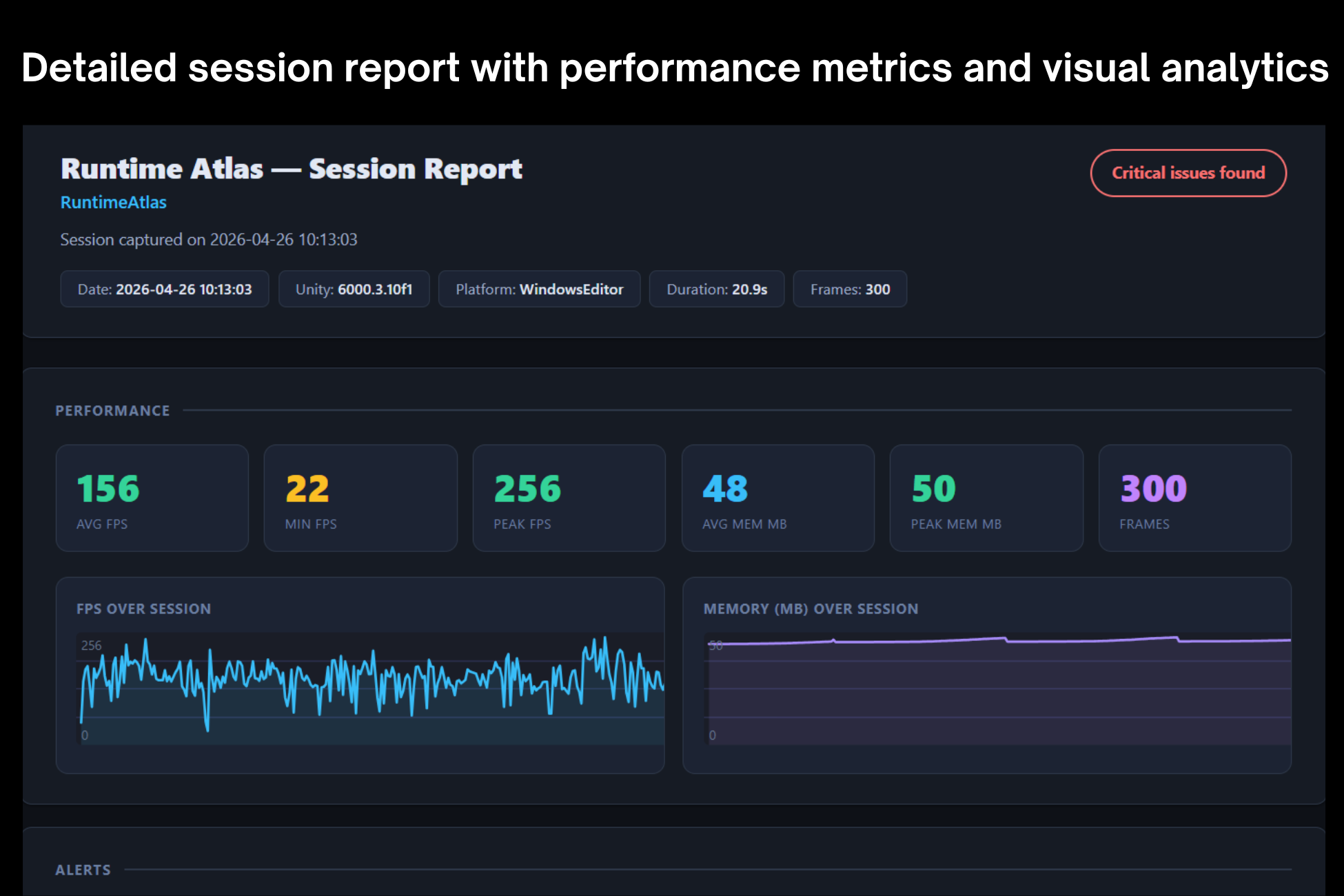

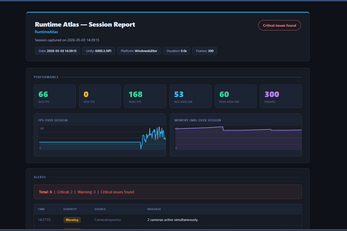

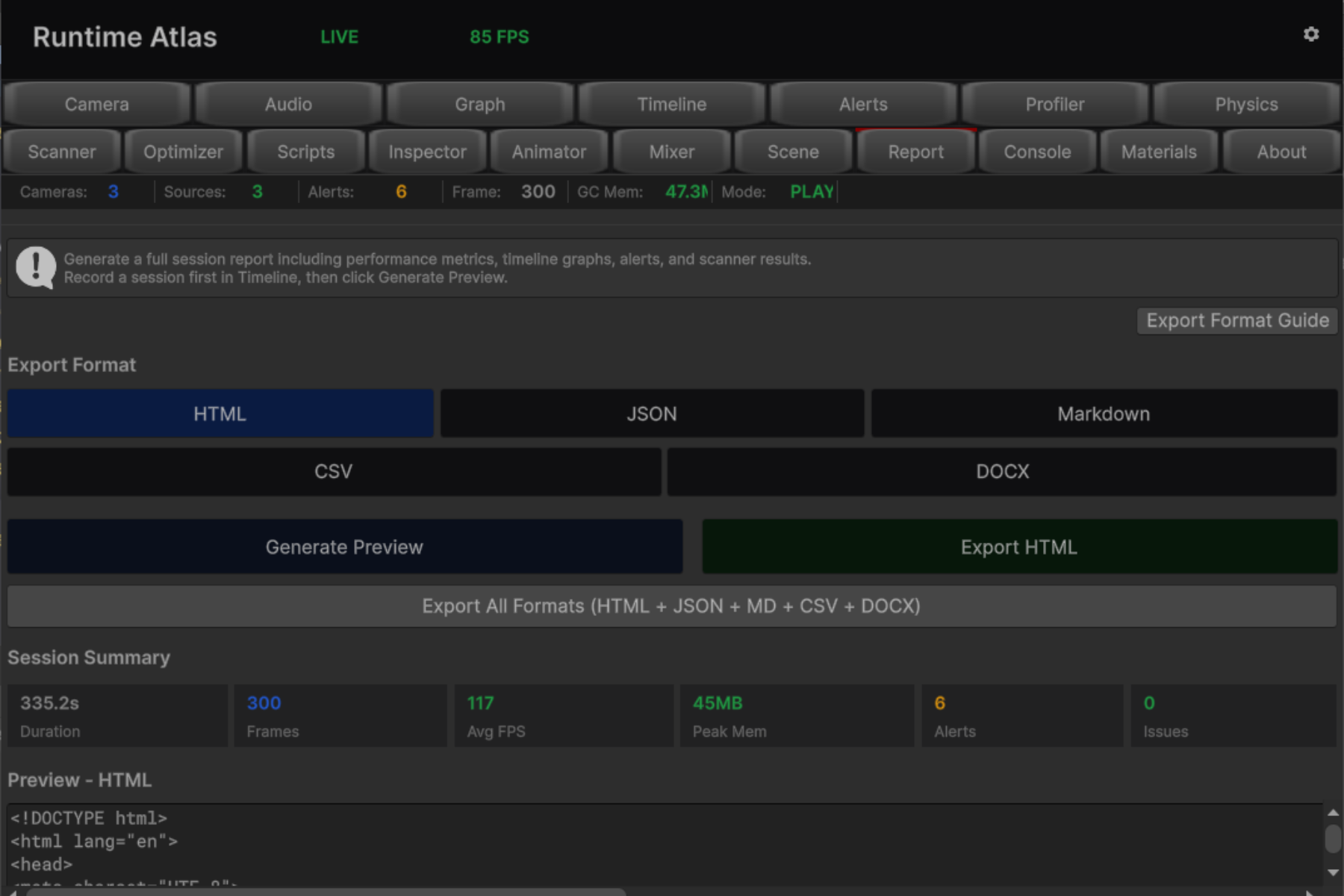

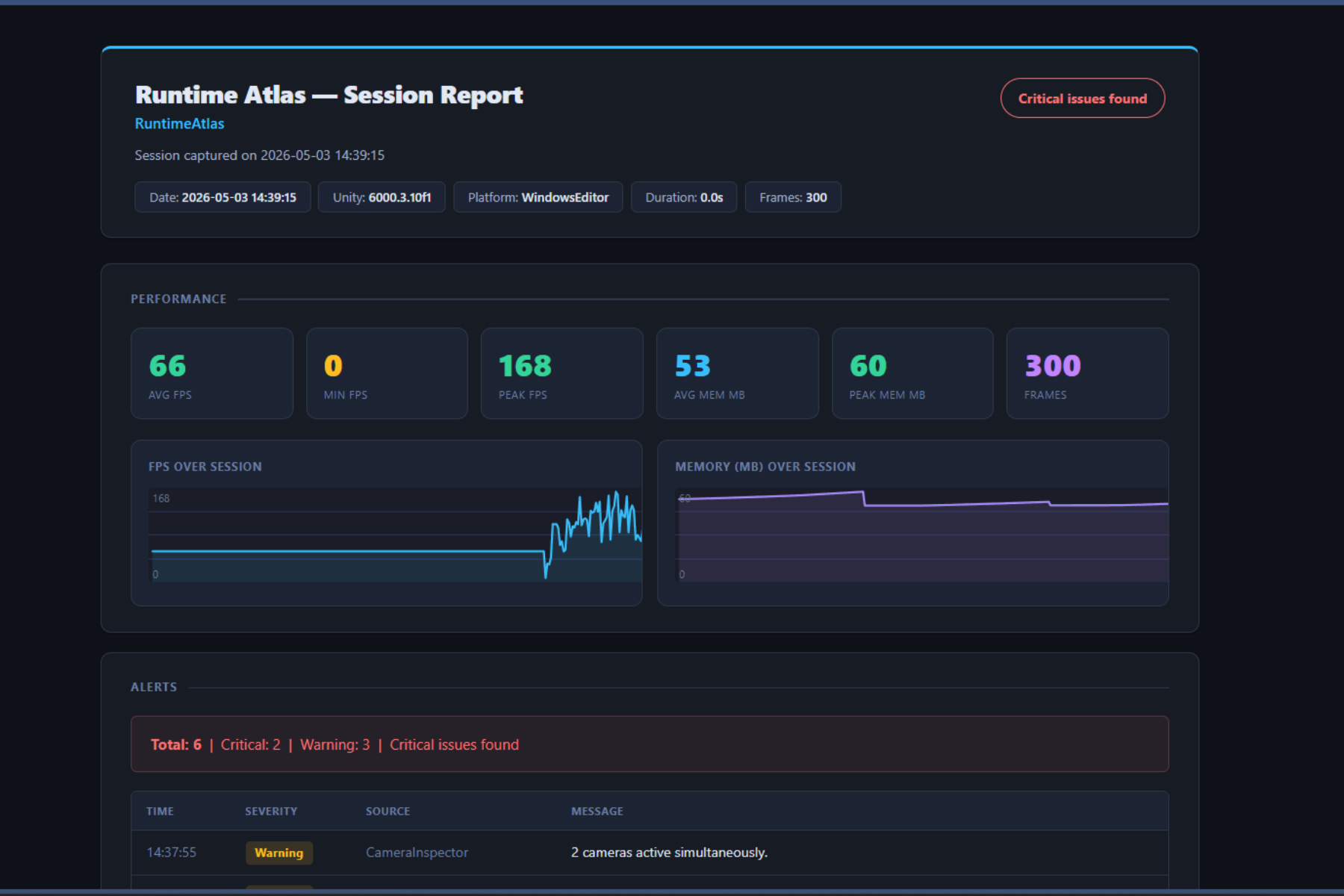

Reporting

Export reports in:

• JSON

• HTML

• Markdown

• CSV

• DOCX

• XML

• YAML

Additional Tools

• Scene explorer

• Console capture

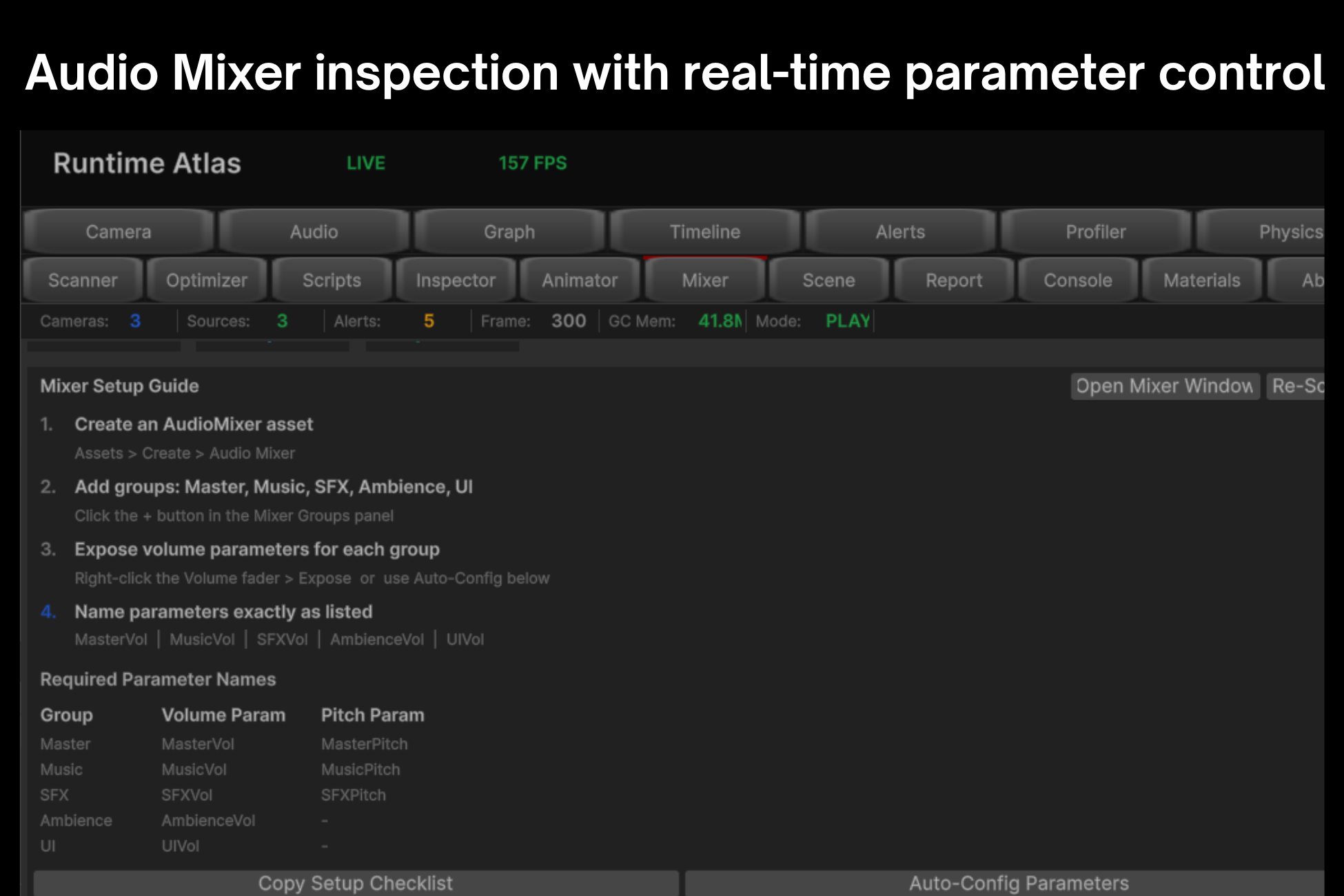

• Audio Mixer control

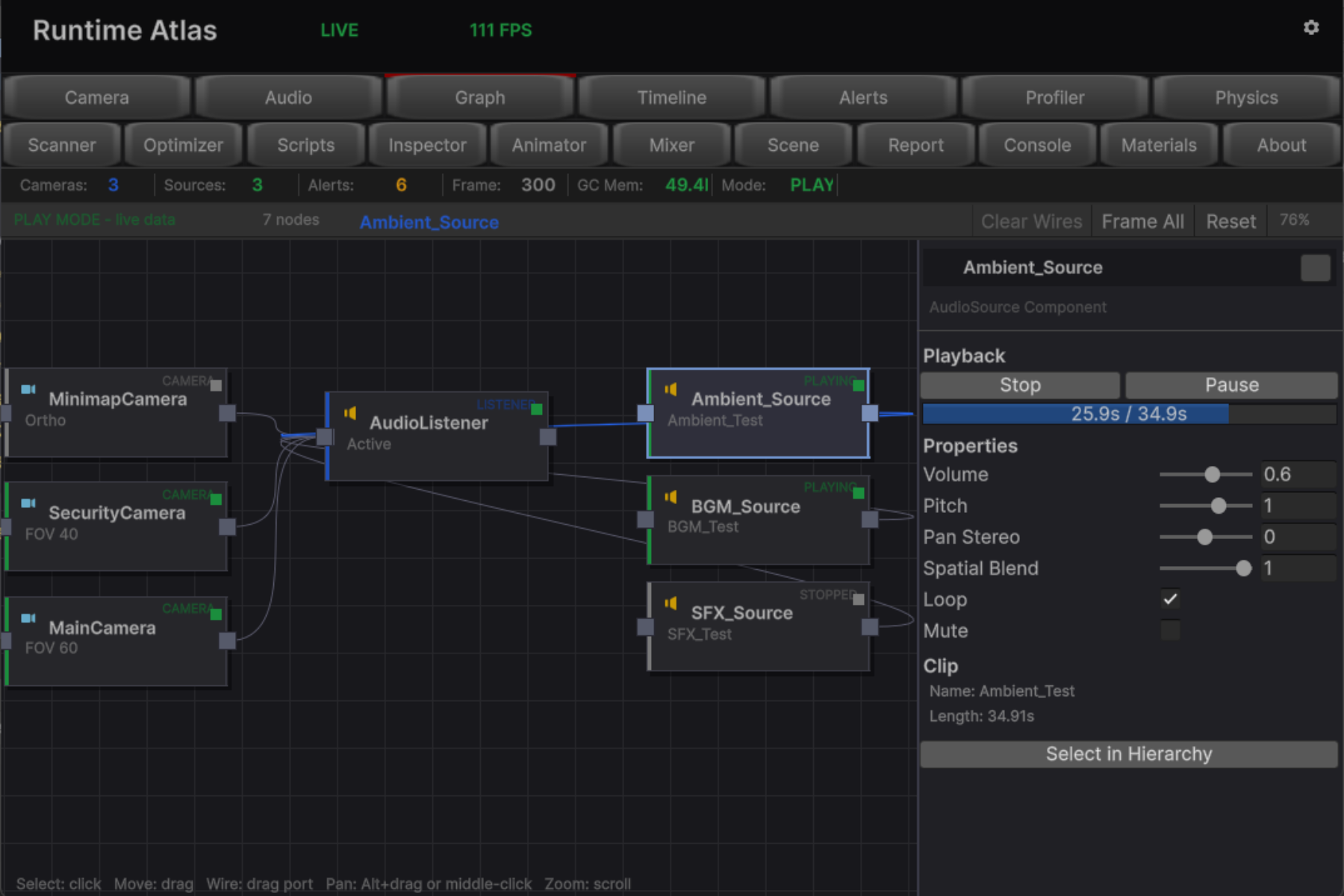

• Interactive module graph

• Component inspector with history support

Technical Highlights

• Zero runtime overhead in player builds

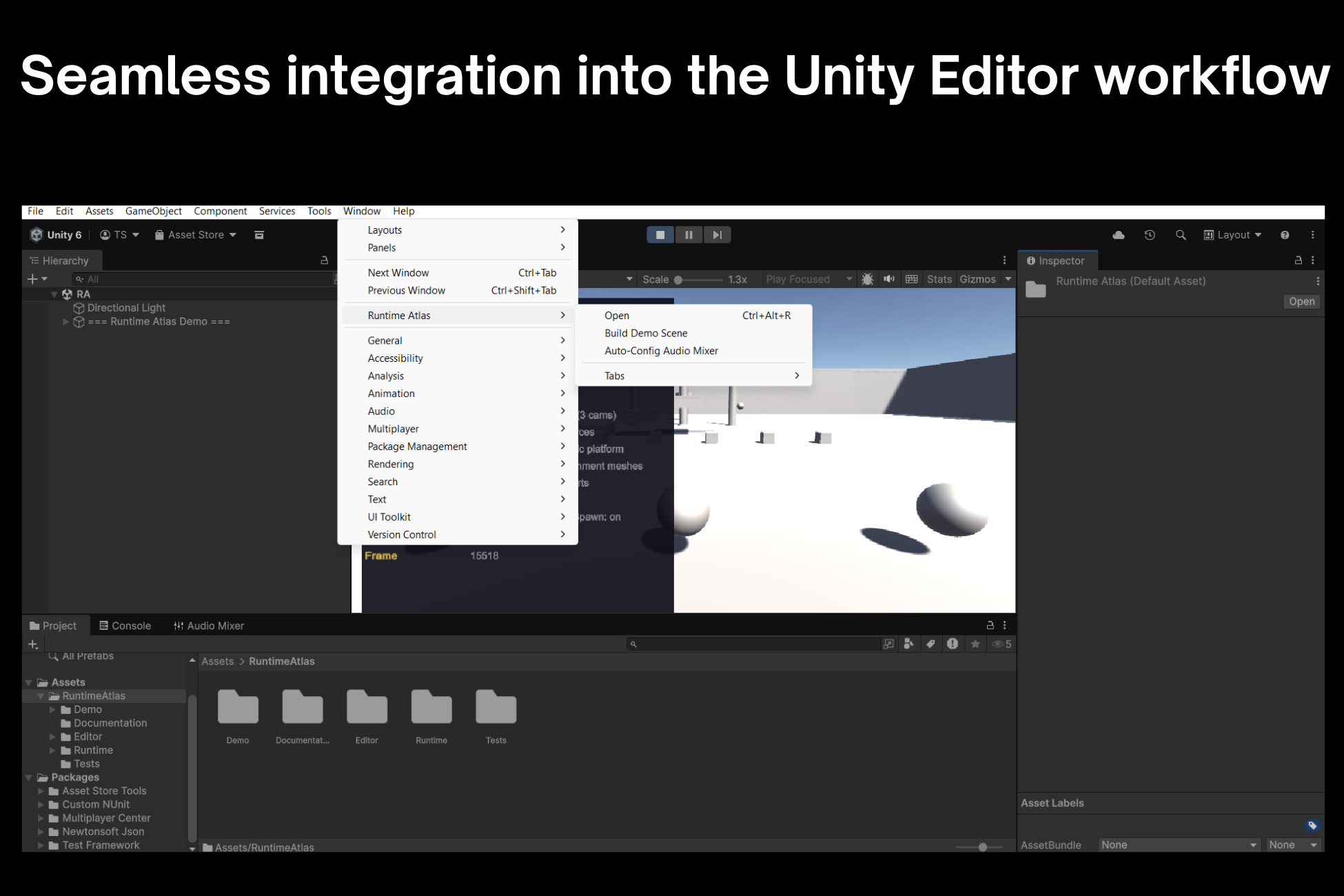

• Editor-only architecture

• Optimized scene query throttling

• No per-frame allocations in hot paths

• Tested on Unity 2021.3 LTS through Unity 6.x

 Supported Pipelines

✓ Built-in RP

✓ URP

✓ HDRP

Requirements

• Unity 2021.3 LTS or newer

• No third-party dependencies required

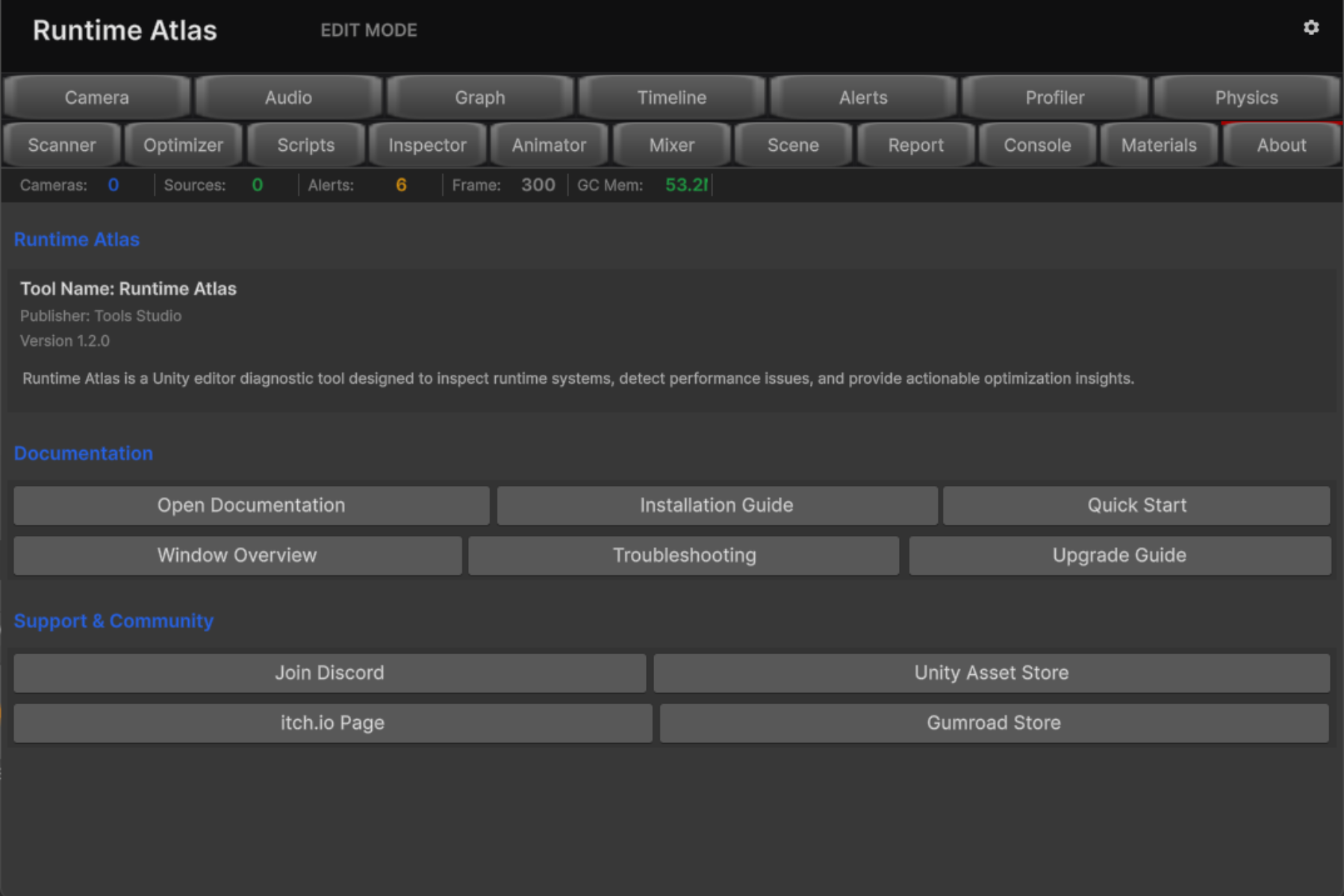

 Documentation & Support

Documentation and support links are included inside the package.

For technical support, include:

• Unity version

• Runtime Atlas version

• Console logs

• Reproduction steps

Important Notes

The Script Scanner is synchronous and may briefly pause the editor on extremely large projects.

Runtime Atlas is an editor extension and does not affect player builds.
